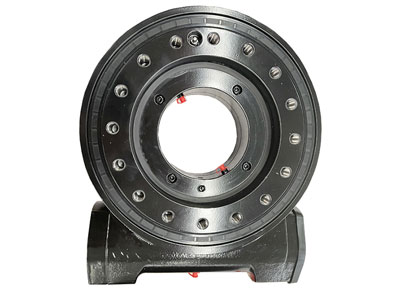

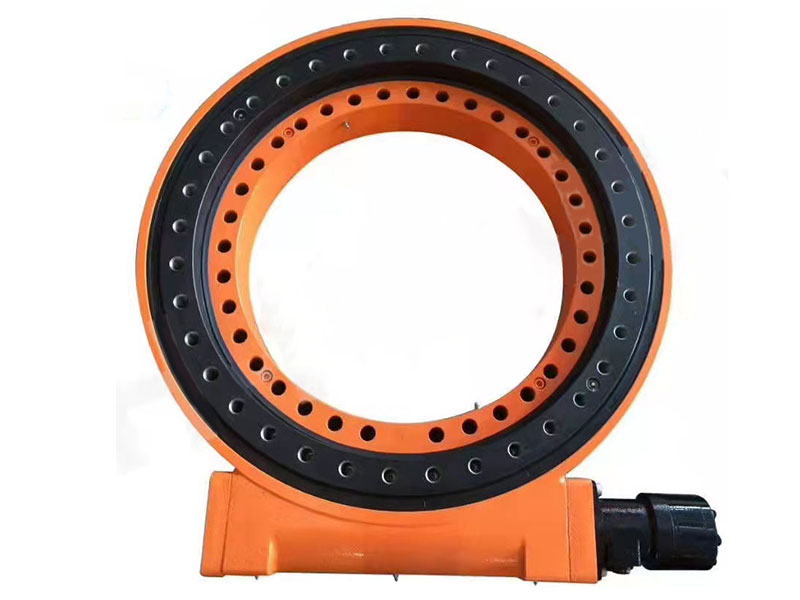

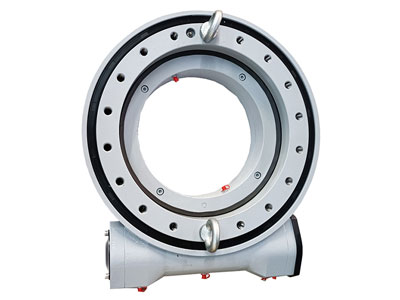

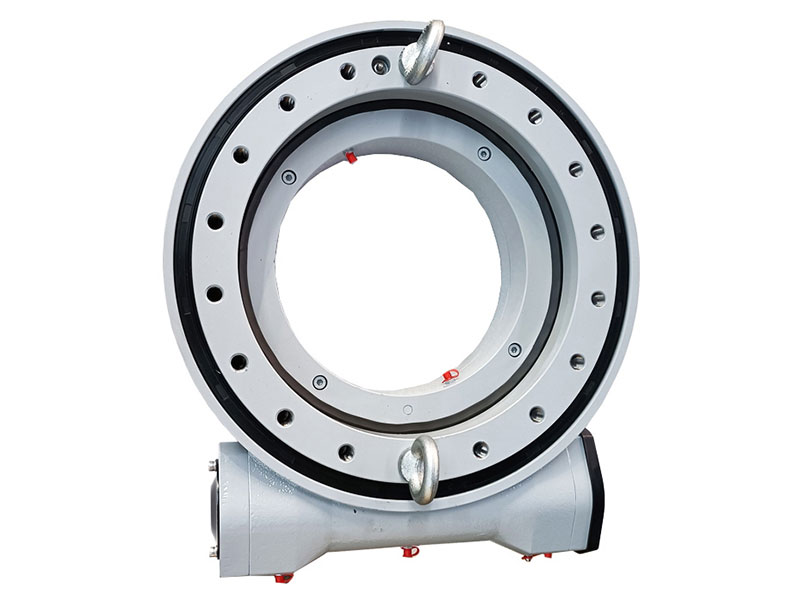

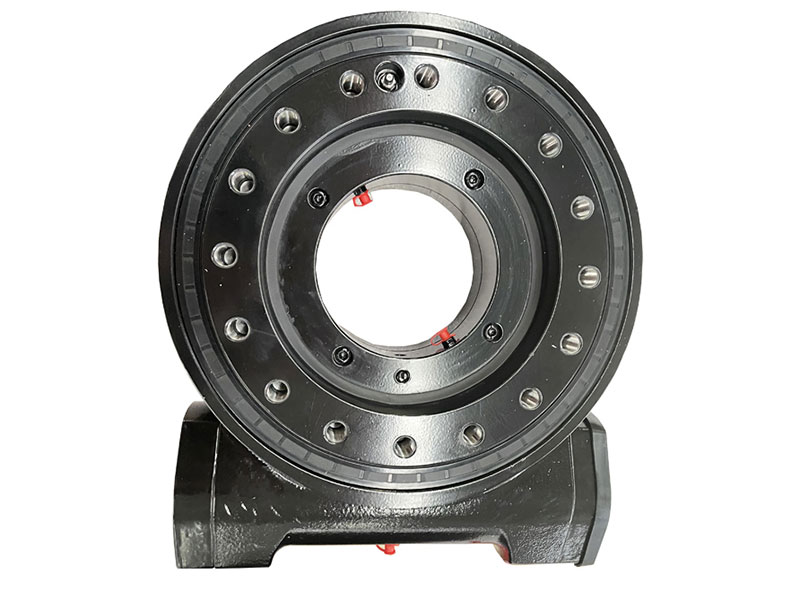

WEA Series Slew Drive
WEA series slewing drive is a new series of slewing product, also named as slewing reducer. It is commonly composed of worm, slewing bearing, housing, motor adapter, end cap and other components. By adopting slewing bearing as its core component, slewing drive can bear axial force, radial force and tilting moment simultaneously. Comparing with SE series slewing drive, WEA series have the advantages of better protective performance, great transmission torque, better impact resistance and long service life.
WEA series slewing drive is widely applied in the relatively rotary parts of machinery and solar energy field, including solar tracking system, rotary chassis of aerial working machinery, truck crane, rock drill, drilling machine, grasping wood machine.
| Model | |
|
|
|
|
|
| Rated Output Torque (KN.m) |
8 | 9.5 | 10.8 | 12.96 | 28.7 | 34.2 |
| Tilting Moment Torque (KN.m) |
33.9 | 54.3 | 67.8 | 135.6 | 203 | 310 |
| Static Axial Load (KN) |
550 | 725 | 920 | 1110 | 1595 | 1850 |
| Static Radial Load (KN) |
205 | 270 | 343 | 414 | 596 | 690 |
| Dynamic Axial Load (KN) |
130 | 180 | 220 | 268 | 340 | 440 |
| Dynamic Radial Load (KN) |
110 | 140 | 190 | 220 | 270 | 320 |
| Holding Torque (KN.m) |
38.7 | 43 | 48 | 72.3 | 105.8 | 158.3 |
| Gear Ratio | 62:1 | 79:1 | 86:1 | 104:1 | 90:1 | 104:1 |
| Output Speed (rpm) |
＜3 | ＜3 | ＜3 | ＜2 | ＜1.5 | ＜1.5 |
| Slef-locking Gears | Yes | Yes | Yes | Yes | Yes | Yes |
| Weight (kg) |
53 | 66.8 | 75 | 96 | 172 | 202 |
Our product range includes precision bearings in dimensions from Ø 100 mm to Ø 1490 mm.
-

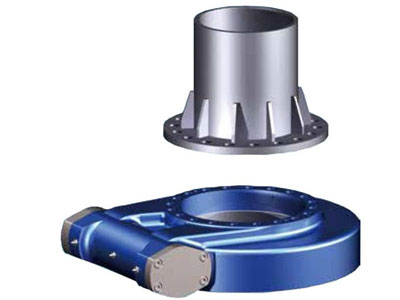

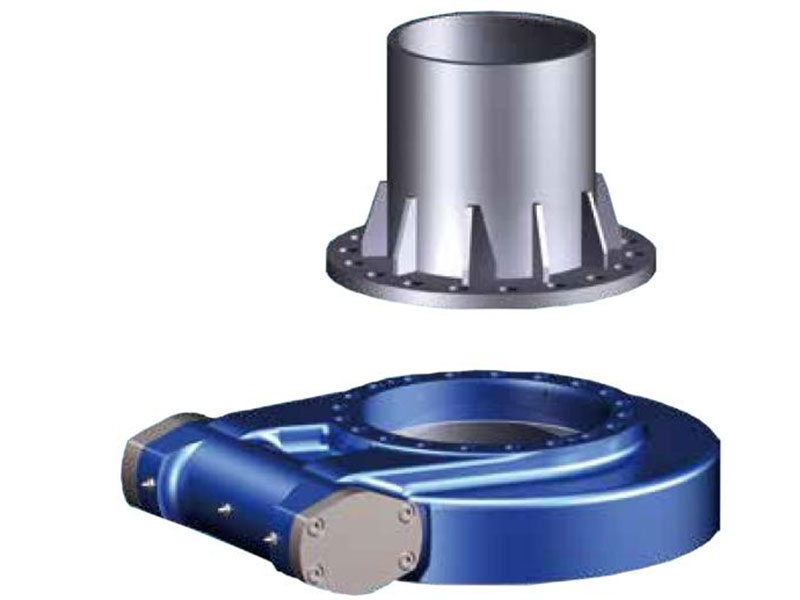

Horizontal Installation
In solar applications, it is recommended to mount the slewing drives upside down on the azimuth axis for better protection and to add protection for the elevation axis.
-

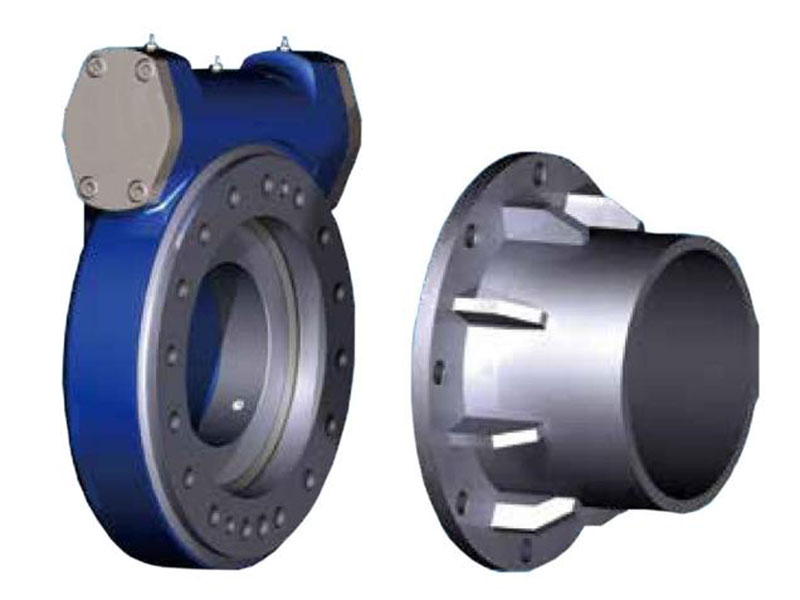

Vertical Installation
In solar applications, it is recommended to install the slewing drives referring to the attached drawing for better protection.
Tags
LYJW is a professional manufacturer of slewing bearings and we can design and manufacture slew ring bearings, precision bearings, slew drives and custom bearings for construction, engineering, mining, marine, chemical, military, wind turbine, medical equipment, and many other industries.
By virtue of expertise team, advanced manufacturing technologies and strict quality management system, LYJW takes the lead in the R&D of slewing bearings, which are designed with reasonable construction, light weight, good load carrying capacity and high versatility. The bearings’ diameters range from 200 to 15000mm and the accuracy covers PO, P6 and P5 class. Now, we can manufacture CCS, ABS, BV, GL and other certified bearings.
We adhere to the business principle of “Quality and Integrity” and we’ll keep providing outstanding bearings and superior services to serve global customer.
